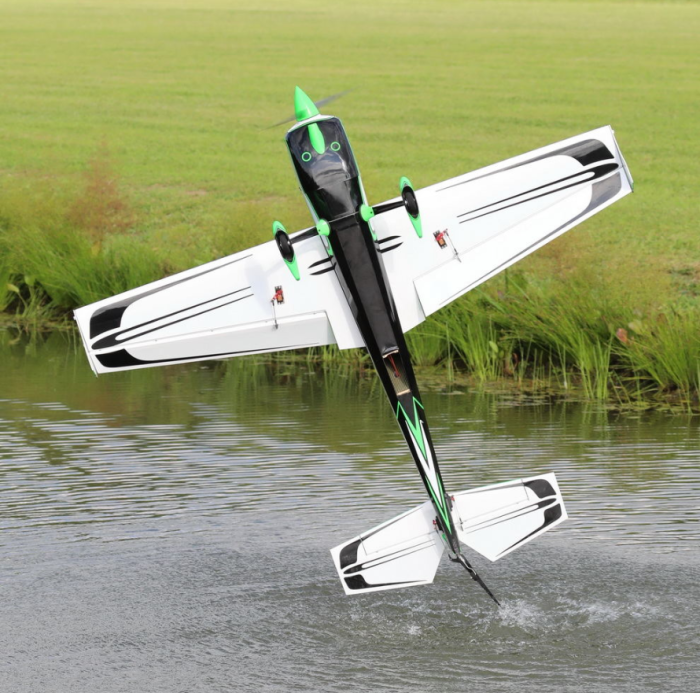

OMPHOBBY 60” 74” 106” Edge 540 Kevlar Reinforced Balsa 3D Airplane

OMPHOBBY 60” 74” 106” Edge 540 Kevlar Reinforced Balsa 3D Airplane

US$ 395.00
Color
Version
ARF PNP
Size
60'' 74” 106”
Add to Cart
Estimate Shipping Cost

BNF: without Transmitter

RTF-Mode1: come with Transmitter (right hand throttle)

RTF-Mode2: come with Transmitter (left hand throttle)

Share:
>

Copy and share this link on social network or send it to your friends

Copy
Adding to cart succeed
OMPHOBBY 60” 74” 106” Edge 540 Kevlar Reinforced Balsa 3D Airplane
color:red,size:xxl
Subtotal: US$ 0
View My Cart
Checkout
Detail Support & Manual Videos
    • OMPHOBBY 60”74”106” Edge 540 comes in the balsa version as well as the Kevlar reinforced version. We are offering Four Beautiful paint schemes (Green, Orange,Red and Yellow), and our signature (Green White Black) schemes covered in the Amazing Oracover, Very durable and Very vibrant in color. Edge 540 is a 3D flying BEAST. This plane will do everything that you want it to do and more.
    • If you are not into 3D flying, don’t be afraid, this plane flies very well as a Sport plane too.

    Parameter Specification

    Item：
    		 OMPHOBBY 60”EDGE 540
    		 Color:
    		 Green▢ Red▢ Yellow▢ Orange▢
    WingSpan:
    		 1524mm(60in)
    		 Full Length:
    		 1500mm(59in)
    Flight Weight:
    		 2.75~2.85KG
    		 The Center of Gravity (CG)：
    		 Approx.86-95mm
    Wing Area:
    		 42.32d㎡
    		Wing Load:
    		 64.98~67.34g/d㎡
    Wing Angle of Incidence:
    		 0°
    		 Motor Thrust Angles:
    		 Down 0° & Right 2.8°
    Pack Dimension：
    		 130*44*22 (L*H*W)cm
    		 Gross Weight:
    		 10KG
    Servo: 13~15 Kg.cm*4 (Aileron*2,Elevator*1, Rudder*1) , Servo Arm: 1.25" 25T Servo Arm
    Electric Power (Recommended):

    Option 1: Motor: X4120 550KV  ESC: 80-100A  Propeller: Eolo 15x8 Lipos: 6s 3300mah-4000mah

    Option2: Motor: 4125 515KV  Esc 100A Propeller: Eolo 16x8 Lipos: 6s 3300mah-4000mah


    Recommended Settings of Dual Rates and Exponentials of Control Surfaces


    		Rate EXP Direction
    		 Throw
    Aileron
    		 High
    		 35~40%
    		 Up
    		 36~39°
    Low
    		 40~45%
    		 Down
    		 20~26°
    Elevator
    		 High
    		 38~45%
    		 Up
    		 45~53°
    Low
    		 45~55%
    		 Down
    		 30~35°
    Rudder
    		 High
    		 38~45%
    		 Up
    		 42~50°
    Low
    		 45~55%
    		 Down
    		 28~32°



    Parameter Specification

    Item：
    		 OMPHOBBY 74” EDGE 540
    		 Color:
    		 Green▢ Red▢ Yellow▢ Orange▢
    WingSpan:
    		 1880mm(74in)
    		 Full Length:
    		 1800mm(71in)
    Flight Weight:
    		 4.8~5.3KG
    		 The Center of Gravity (CG)：
    		 Approx.120-135mm
    Wing Area:
    		 70.51g/d㎡
    		 Wing Load:
    		 68~75.1g/d㎡
    Wing Angle of Incidence:
    		 0°
    		 Motor Thrust Angles:
    		 Down 0° & Right 2°
    Pack Dimension：
    		 144*56*30(L*H*W)cm
    		 Gross Weight:
    		 15.3kg
    Servo: 20~35 Kg*5 (Aileron *2, Elevator*1 Rudder*1 Throttle*1), Servo Arm: 1.5" 25T Servo Arm
    Gas Power (Recommended): 30-35CC, Propeller: 19x8/19x9/19x10/20x8/20x9

    Electric Power (Recommended):

    Option 1: Motor: Sunnysky 7015, ESC: X120A, Propeller:20x8/20x9, Lipo 8s 4000mah/12s 3300mah 3700mah  4000mah

    Option 2: Motor: Sunnysky 6220, ESC: X120A, Propeller:20x8/20x9 ;  Lipo  6S 5000mah /8s 3300mah 3700mah 4000mah


    Recommended Settings of Dual Rates and Exponentials of Control Surfaces


    		Rate EXP Direction
    		 Throw
    Aileron
    		 High
    		 35~40%
    		 Up
    		 36~39°
    Low
    		 40~45%
    		 Down
    		 20~26°
    Elevator
    		 High
    		 38~45%
    		 Up
    		 45~53°
    Low
    		 45~55%
    		 Down
    		 30~35°
    Rudder
    		 High
    		 38~45%
    		 Up
    		 42~50°
    Low
    		 45~55%
    		 Down
    		 28~32°




    Parameter Specification

    Item：
    		 OMPHOBBY 106”EDGE 540
    		 Color:
    		 Green▢ Red▢ Orange▢
    WingSpan:
    		 2690mm(106in)
    		 Full Length:
    		 2630mm(104in)
    Flight Weight:
    		 12.5KG
    		 The Center of Gravity (CG)：
    		 Approx.170-180mm
    Wing Area:
    		 127.42㎡
    		 Wing Load:
    		 98.1g/d㎡
    Wing Angle of Incidence:
    		 0°
    		 Motor Thrust Angles:
    		 Down 0° & Right 3°
    Pack Dimension：
    		 106” Body: 237*49*55 cm (L*H*W)
    106” Wings: 77*21*21cm(L*H*W)
    		 Gross Weight:

    106” Body: 32kg
    106” Wings: 11kg

    Servo: 40~55Kg.cm*9   ( Aileron*4, Elevato*2, Rudder*2, Throttle*1), Servo Arm:  2" 25T Servo Arm

    Gas Power (Recommended): 120~130CC, Propeller: 28x10/28x11


    Recommended Settings of Dual Rates and Exponentials of Control Surfaces


    		Rate EXP Direction
    		 Throw
    Aileron
    		 High
    		 35~40%
    		 Up
    		 36~39°
    Low
    		 40~45%
    		 Down
    		 20~26°
    Elevator
    		 High
    		 38~45%
    		 Up
    		 45~53°
    Low
    		 45~55%
    		 Down
    		 30~35°
    Rudder
    		 High
    		 38~45%
    		 Up
    		 42~50°
    Low
    		 45~55%
    		 Down
    		 28~32°
